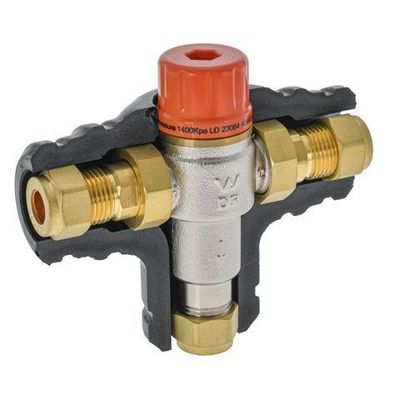

Plumbing | Tempering Valve 15mm High Performance Lead Free - Code: TV15HPLF

Logi Valve TVHP is ideal for use in situations where there is a need to maintain continous temperate water temperature in high performance, and high temperature applications, such a solar hot water systems, instantaneous heater installations and pumped ring main hot water distribution systems.

• Watermarked As 4032.2 Lic 23453
• Lead Free
• High temperature resistant components
• Integral mesh strainers
• Integral non return valves
• Innovative polymers for greater resistance to calcium deposits
• Factory set at 50°C (must be commissioned on site)
• Tamper proof adjustment
• Tested and certified to AS 4032.2
•  Insulation jacket provided as per AS 3500

Installation

• High temperature resistant components
• Integral mesh strainers
• Integral non-return valves
• Innovative polymers for greater resistance to calcium deposits
• Factory set at 50°C (must be commissioned on site)
• Tamper proof adjustment
• Insulation jacket provided as per AS 3500
• Logi Valve shall be installed in accordance with Logi Valves installation instructions, AS 3500 and any local requirements.

Prior to installation ensure that all lines are flushed for debris that may
cause the product to malfunction.
Make sure that non-return valves and strainers are fitted to both inlets of
the valve.
It is recommended to install the TVHP Series in a location that it can
be easily accessed for strainer checking, cleaning and or temperature
adjustment.
If the TVHP is fitted to a sanitary outlet, 1m of pipe must be installed
between the TVHP and the outlet.
