MAG HORNE Thermo Mixing Valve H1502 C/P - Code: 42036

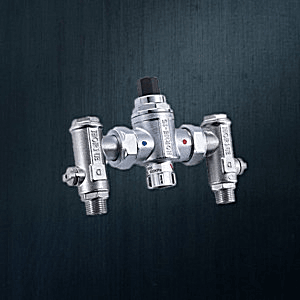

MAG HORNE H1502 Thermostatic Mixing Valve H150 Chrome - Code: 42036

• 1/2" BSP - 2 Isolation Valves - 2 Non-Return Valves - 2 Strainers
• 150mm between pipe centers
• Watermarked
• Warranty: 5-year Parts & Labour

Must be installed by a suitably qualified tradesperson in accordance with the manufacturer's instructions, AS/NZS 3500 and AS4032

Also see our comprehensive list of spare parts included in this product category

The main functions of a Horne 15 TMV H1502 thermostatic mixing valve are
to:

• Mix hot and cold water to provide mixed water at a steady temperature independent of reasonable fluctuations in the temperature and/or pressure of the incoming hot water or cold-water supply.
• Close the hot or cold-water supply in the event of failure of the other supply
• The Horne TMV provides the most reliable way to dispense temperature-controlled warm water, delivering more precise control than tempering valves.

Superior performance
The HORNE H1502 TMV valve includes unique features making it safer to operate, simpler to install and easier to maintain in accordance with the stringent regulations governing thermostatic mixing valve maintenance.

• Reliable control at low flow rates
• The recommended mixed water temperature, 40.5°C to
• 43.5°C (for adults) and 38.0°C to 40.5°C (for children), is maintained from a minimum flow rate of 2.5 litres/minute through to maximum flow rate of 48 litres/minute

Horne TMV technical
1/2" BSP - 2 Isolation Valves - 2 Non-Return Valves - 2 Strainers 150mm between pipe centres Watermarked Warranty: 5-year Parts & Labour Must be installed by a suitably qualified tradesperson in accordance with the manufacturer's instructions, AS/NZS 3500 and AS4032 PRICE ON APPLICATION Also see our comprehensive list of spare parts included in this product category The main functions of a Horne 15 TMV H1502 thermostatic mixing valve are to: 1. Mix hot and cold water to provide mixed water at a steady temperature, independent of reasonable fluctuations in the temperature and/or pressure of the incoming hot water or cold-water supply, and to -  2. Close the hot or cold-water supply in the event of failure of the other supply The Horne TMV provides the most reliable way to dispense temperature controlled warm water, delivering more precise control than tempering valves. Superior performance The HORNE H1502 TMV valve includes unique features making it safer to operate, simpler to install and easier to maintain in accordance with the stringent regulations governing thermostatic mixing valve maintenance. Reliable control at low flow rates The recommended mixed water temperature, 40.5°C to 43.5°C (for adults) and 38.0°C to 40.5°C (for children), is maintained from a minimum flow rate of 2.5 litres/minute through to a maximum flow rate of 48 litres/minute. Horne TMV technical overview The Horne TMV is supplied complete with inbuilt two isolating valves, two non-return valves and two strainers. It is simpler to service- easy to remove and replace central valve due to true flat-faced valve connections. The slim profile enables the valve to be installed within 50 mm stud walls if required, and the Inlet connections can be rotated to suit existing or preferred pipework layout. Due to high flow rate, one valve can cater for one, two or three bathrooms within 10 metres.

two isolating valves, two non-return valves and two strainers. It is simpler to service-

easy to remove and replace central valve due to true flat-faced valve connections. The slim profile enables the valve to be installed within 50 mm stud walls if required, and the Inlet connections can be rotated to suit existing or preferred pipework layout. Due to high flow rate, one valve can cater for one, two or three bathrooms within 10 metres.
